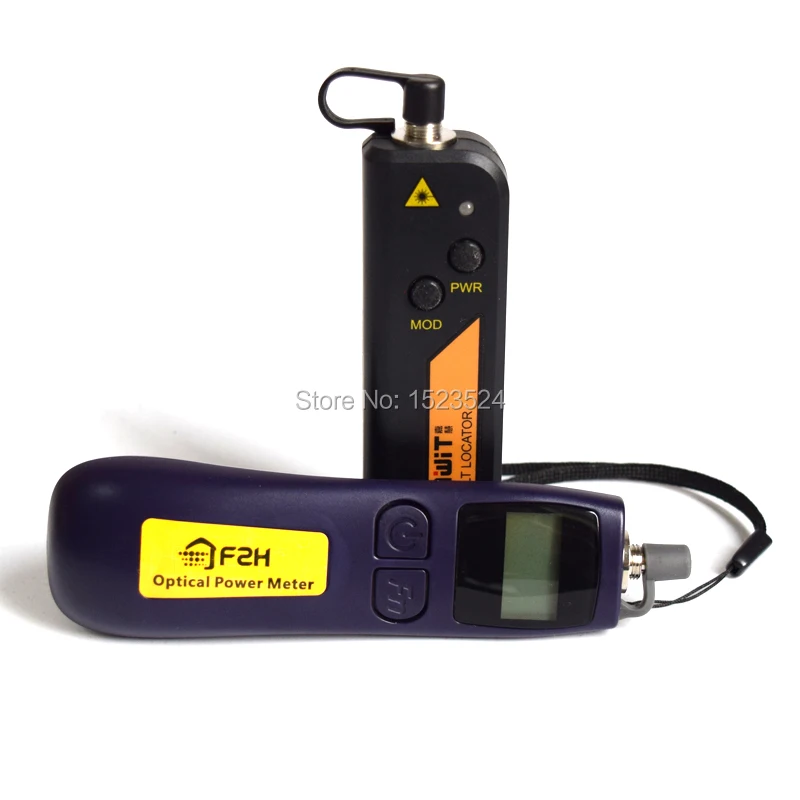

Fiber Optic Tool Kit FHP12A 70 10dBm Mini Optical Power Meter and JW3105N Visual Fault Locator
100 % of buyers enjoyed this product!
Availability: in stock
4.7 out of 5 based on 478 ratings. 51 user reviews.
Price:  US $60.99 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

One of these products is actually extremely understanding of your needs for this unique item. The goods directory you get is absolutely offer a reference for those of you that want to locate the product you want. As a product that aids your needs to get convenience, of training course this product is really intriguing to obtain.

Fiber Optic Tool Kit FHP12A -70~+10dBm Mini Optical Power Meter and JW3105N Visual Fault Locator 10mw

Description FHP12 Series Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm, 1300nnm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. Used together with Optical Laser Source, it could accurately measure the loss of fiber, cable and other passive optical devices. Features Imported sensor head 2.5mm universal interface(support FC/SC/ST connectors) Low power consumption, continuous work more than 80 hours Linear optical power and logarithmic power display Automatic measuring range adjust and power remains indication Relative value measurement function Compact and portable design

Specification

Type FHP12-A FHP12-B
Display Range +10~-70dBm @1550nm +26~-50dBm @1550nm
Resolution 0.01
Calibrated Wavelength 850/1300/1310/1550/1490/1625
Sensor Type InGaAs
Accuracy 0.35dB ±1nW 0.35dB ±10nW
Working Wavelength 800~1700
Continuous Working Hours About 80 hours(stand-by time:About 1600hours)
Power Source 2*AAA dry batteries(not included)
Working Temp. -10~+50°C;<90%RH
Storage Temp. -20~+70°C;<90%RH
Dimension L120mm*W33mm*H30mm / About70g

JW3105N Fiber Optic Visual Fault Locator is an efficient and low cost basic fiber test tool, it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone.
End-to-end visual fiber identification.

Key Features

Constant & stable output power.
Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage.
Low battery warning, reminds users to change the battery timely.
Long battery life(up to 40 hours with AAA batteries).
Operates either in CW or Pulsed.
Pocket size and light weight, easy to use.

Specifications

Type JW3105N Economical VFL
Central Wavelength 650nm+-10nm
Emitter Type FP-LD
Output Power 10mw
Optical Connector

FC/2.5mm universal connector

Operating Model Both CW and Pulse 2Hz available
Power Supply Two AAA alkaline batteries(not included)
Battery Operating Time 40hours
Operating Temperature -10-+60

Storage Temperature

-25-+70
Dimension mm 100*30*18mm
Weight 37g

Standard Packages

MODEL

INCLUDES

JW3105N

JW3105N VFL, User Manual, and Soft Carrying case.
